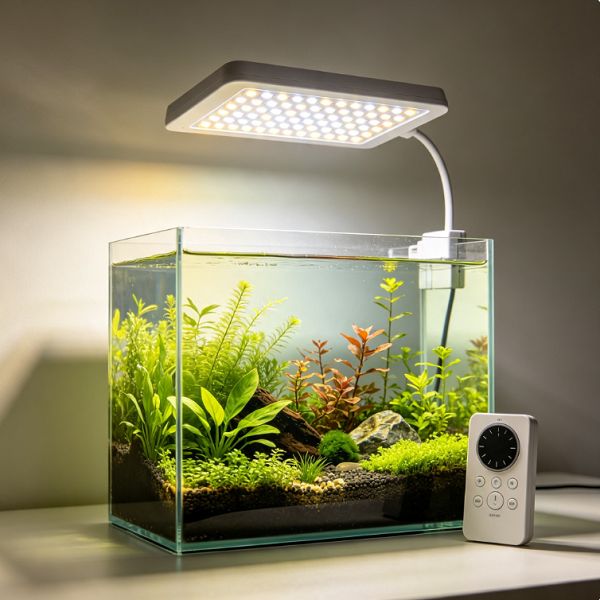

The Dimmable LED Aquarium Light with Built-in Timer is an engineered freshwater LED fixture that combines full-spectrum output, precision dimming, and an integrated day/night controller. Designed for planted tanks and freshwater aquariums, this unit maintains stable photosynthetic active radiation (PAR) output while minimizing heat accumulation and moisture ingress. Available in multiple length configurations with extendable mounting brackets, it fits standard glass thickness from 5 mm to 12 mm.
Key Features of Dimmable LED Aquarium Light with Timer
Full-Spectrum Spectrum Tuning: Balanced output across 400nm–700nm wavelengths promotes plant photosynthesis and enhances natural fish coloration without encouraging nuisance algae.
Integrated 24/7 Timer & Dimmer: Built-in digital controller supports preset sunrise, daylight, sunset, and moonlight cycles with gradual ramping to reduce fish stress.
Aluminum Alloy Heat Sink: 6063-T5 extruded aluminum housing provides passive thermal management, eliminating cooling fans and maintaining junction temperatures below 65°C.
Moisture-Resistant Sealing: IP67-rated conformal coating on PCB assemblies prevents circuit corrosion caused by water splashing and evaporation.
High Color Rendering (CRI > 88): Delivers natural color representation for aquatic plants, substrate, and freshwater species.
Technical Specifications
|
Parameter |
Specification |
|
Input Voltage |
AC 100–240V, 50/60 Hz |
|
Operating Voltage |
DC 20V / DC 24V (Low Voltage Safety) |
|
Power Output |
18W / 24W / 32W / 42W / 52W |
|
LED Chip Type |
SMD 2835 / SMD 5050 (High Efficiency) |
|
Luminous Efficacy |
90–100 lm/W |
|
Color Temperature |
6500K–9000K (Adjustable Channels) |
|
Color Rendering Index (CRI) |
> 88 |
|
Housing Material |
Anodized Extruded Aluminum + Polycarbonate (PC) Cover |
|
IP Rating |
IP67 (Light Body) |
|
Lifespan |
> 35,000 Hours (L70 at 25°C Ambient) |
|
Certifications |
CE, RoHS, FCC, UL (Power Adapter) |
Timer & Lighting Control
The integrated control unit uses a 32-bit MCU with internal memory retention, preserving program settings during power outages up to 72 hours without battery backup.
Control Specifications & Functions
Dimming Range: 10% to 100% brightness adjustment across independent color channels.
Ramp Up / Down Duration: Gradual light transition over 15 or 30 minutes to emulate natural dawn and dusk cycles.
Time Modes:
• Default Mode: Pre-programmed 24-hour cycle (Sunrise: 06:00, Daylight: 08:00–18:00, Sunset: 18:00–20:00, Night: 20:00–23:00).
• Custom Mode: User-definable ON/OFF schedules with custom brightness levels.
Applications of Dimmable LED Aquarium Light with Timer
Freshwater Planted Aquariums: Delivers necessary PAR levels (50–120 µmol/m²/s at 40 cm depth) for low-to-medium light aquatic plants such as Anubias, Ferns, and Cryptocoryne.
Fish-Only Freshwater Tanks: Provides vivid illumination for tropical freshwater species, highlighting metallic and iridescent scale pigments.
Paludariums & Terrariums: Slim line chassis allows mounting within humid enclosed setups.
Model Selection Guide
|
Model Code |
Fixture Length |
Adjustable Bracket Range |
Power (W) |
PAR Output (at 30 cm) |
Suitable Tank Size |
|
AL-DIM-30 |
280 mm |
300 mm – 450 mm |
18W |
85 µmol/m²/s |
30–45 cm |
|
AL-DIM-45 |
430 mm |
450 mm – 600 mm |
24W |
110 µmol/m²/s |
45–60 cm |
|
AL-DIM-60 |
580 mm |
600 mm – 800 mm |
32W |
135 µmol/m²/s |
60–80 cm |
|
AL-DIM-90 |
880 mm |
900 mm – 1100 mm |
42W |
150 µmol/m²/s |
90–110 cm |
|
AL-DIM-120 |
1180 mm |
1200 mm – 1500 mm |
52W |
165 µmol/m²/s |
120–150 cm |
Installation & Compatibility
Extendable Stainless Steel Legs: Rust-resistant 304 stainless steel rods adjust laterally to fit custom aquarium dimensions.
Rimless & Rimmed Tank Compatibility: Mounting legs clamp onto glass thickness up to 12 mm or rest directly on tank frames.
Power Supply Cable: Includes a 1.8-meter DC extension cord with waterproof quick-connect coupling between fixture and controller.
Product Construction
Top Layer: Anodized Aluminum Alloy Top Housing (Heat Sink Profiles 6063-T5)
Thermal Layer: Thermal Conductive Silicone Pad (1.5 W/m·K)
Core Layer: Aluminum-Core PCB with High-CRI SMD LEDs (IP67 Coating)
Optical Layer: High-Transmittance Optical PC Diffusion Lens
Enclosure: Sealed ABS End Caps with Silicone Gaskets & Stainless Steel Screws
Quality Control & Testing
Every production batch undergoes strict quality verification protocols prior to packaging:
Integrating Sphere Test: 100% verification of luminous flux, color temperature (CCT), CRI, and power consumption.
Thermal Imaging Test: Infrared temperature monitoring ensures heat sink dispersal keeps junction temperatures within operational limits.
Burn-in Testing: Continuous 8-hour full-power burn-in test to identify early component failure.
Moisture & Splash Chamber Test: IP standard pressure and humidity exposure testing to confirm housing seal integrity.
Drop & Vibration Testing: ISTA-standard packaging drop tests simulate international freight transit conditions.
OEM & Private Label
We provide full OEM/ODM manufacturing capabilities for global importers and brand owners:
Custom Spectrum Configuration: Tailored LED ratio (660nm Red, 460nm Blue, 6500K White) based on client target market specifications.
Branding & Packaging: Laser engraving on aluminum housing, customized color boxes, user manuals, and barcode inner/master cartons.
Custom Housing Colors: Anodized black, silver, or custom color finishes available for minimum order quantities (MOQ).
Power Adapter Localization: Regional plug types (US, EU, UK, AU) with local safety certifications.
FAQ
Q: How does the internal timer retain settings during power interruptions?
A: The controller utilizes non-volatile EEPROM memory. When main AC power disconnects, settings and time tracking remain stored for up to 72 hours. Upon power restoration, the fixture automatically resumes the scheduled lighting cycle.
Q: What thermal management measures prevent premature LED decay?
A: The fixture uses an aluminum-core PCB mounted directly to a 6063-T5 extruded aluminum channel using thermal silicone paste with 1.5 W/m·K conductivity. Passive convection cooling maintains chip temperature below critical thresholds, limiting lumen depreciation to under 5% over 10,000 continuous hours.
Q: Is this fixture suitable for saltwater or reef environments?
A: This model is engineered specifically for freshwater aquariums and freshwater aquatic plants. Saltwater applications require different spectral ratios (higher blue spectrum intensity) and upgraded anti-corrosion housing coatings.
Q: What customization options are available under OEM orders?
A: OEM services include custom spectrum layouts, housing lengths, anodized surface colors, laser-etched brand logos, custom UI/button configuration on controllers, customized retail packaging, and regional power supply compliance.
Q: What is the standard minimum order quantity (MOQ) and lead time for bulk orders?
A: Standard product MOQ is 200 units per size model. Customized OEM packaging and spec adjustments carry a standard MOQ of 500 units per model. Sample orders ship within 3–5 days; bulk production lead time is 25–30 days upon sample sign-off and deposit receipt.
Q: How is the IP67 waterproof rating achieved and tested on the production line?
A: Waterproof sealing combines ultrasonic-welded end caps, silicone perimeter gaskets, and conformal potting resin over internal circuitry. Random samples from each production run undergo high-humidity chamber exposure and pressurized water spray testing.
